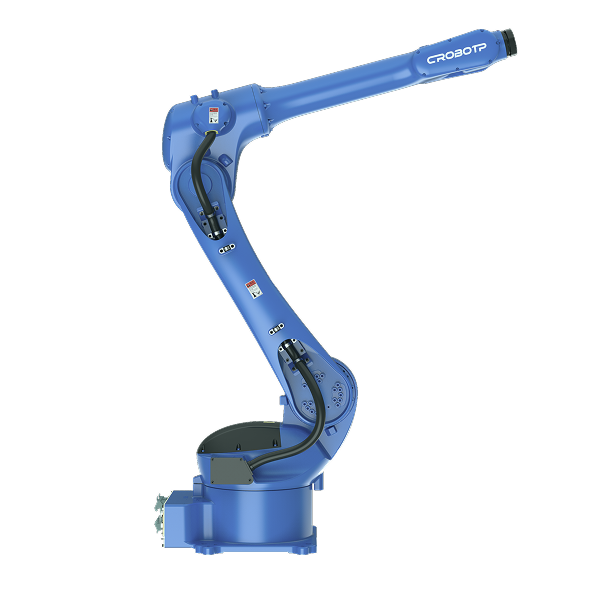

CRP-RA20-12-J
The laser welding robot consists of the robot body and the electrical cabinet,and is shipped with the laser welding software package.lt is primarily used for applications such as laser welding, laser cutting,and laser cladding.
CHARACTERISTICS OF ROBOT PERFORMANCE
A specialized interface for laser welding,featuring controllable power, wire feeding,soft start and stop, pre-laser emission and decay, wire sticking detection, pre-wire extraction, and wire replenishment, etc.
Rigid, high precision, low jitter.
It can control the wire feeding of servo or stepper motors.
Using a vertical teaching pendant, the efficiency of robot programming is higher.
Compact electrical cabinet, small in size, can be integrated into the laser host.
Single-phase 220V input power supply,easy and quick to connect.
Built-in UPS, supports power regeneration after outage.
Entity: RA15-12-J/RA18-20-J/RA20-12-J
Electrical cabinet: G5A
Teaching Pendant: Vertical Teaching Pendant, cable length 6 meters
Operation box: 2 (with 5-meter cable)
Control cabinet and main body interconnection cable 5 meters
Welding wire drum and stand
Optional two external axes
ROBOT BODYTECHNICAL PARAMETERS
INSTALLATION INTERFACE DIAGRAM
MOTION RANGE DIAGRAM
